Rubber Sheet
Toptrans

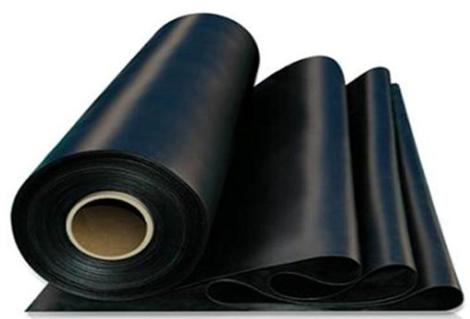

NBR Rubber Sheet
With Excellent resistance to oils, solvents and fuels. Resistant to a broader range of aromatic hydrocarbons than neoprene. Nitrile may be blended with SBR rubber to achieve an economically priced sheet or moderately oil resistant applications. Temperature range: -30°C to +120°C, with the possibility of reaching -40°C.
Technical Data:
Commercial NBR rubber
Type | Specific Gravity (g/cc) | Hardness (Shore A) | Tensile Strength (Mpa) | Elongation at break % | Color | Working temperature (°C) |
NBR | 1.6 | 70±5 | 3 | 200 | black | -20/90 |
1.55 | 65±5 | 4 | 250 | black | -20/90 | |
1.5 | 60±5 | 5 | 250 | black | -20/90 | |
1.4 | 70±5 | 7 | 300 | black | -20/90 |
High quality NBR rubber
Type | Specific Gravity (g/cc) | Hardness (Shore A) | Tensile Strength (Mpa) | Elongation at break % | Color | Working temperature(°C) |
NBR | 1.16 | 50±5 | 7.5 | 450 | black | -30/100 |
1.19 | 60±5 | 8.5 | 400 | black | -30/100 | |
1.2 | 65±5 | 8.5 | 400 | black | -30/100 | |
1.21 | 70±5 | 12.5 | 250 | black | -30/100 | |
1.28 | 80±5 | 12.5 | 150 | black | -30/100 |
