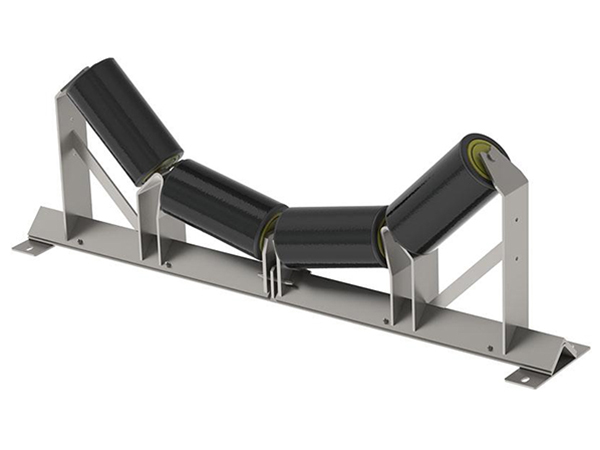

Conveyor Roller
Toptrans
Conveyor Roller
Conveyor rollers(idlers) are important parts on Belt Conveyor, it endures over 70% resistance of a belt conveyor. The conveyor roller (idler) is used to support conveyor belt and the material on it. There are kinds roller we supplied, like steel, nylon, ceramic or rubber. With years designing and manufacturing experience Toptrans becomes a high quality roller(idler) server in conveyor spares industry.
Product Scope:
Dia (mm): 63.5, 76, 89, 102, 108, 114, 127, 133, 140, 152, 159, 168, 178, 194, 219
Length (mm): 170-2800
Executive Standard: GB/DIN/CEMA/SABS/JIS
Advantage: Our rollers enjoy minimum revolving resistance, low vibration and noise, good concentricity, long lifetime, low maintenance cost and high loading capacity.
Material:
Tube: High-precision ERW, welded with DIN2394 Standard
Shaft: Cold drawn steel in accordance with DIN17100 and other equivalent standard, ISO h6 precision
Bearing housing: Cold pressing working, ISO M7
Seals: Labyrinth seal, Nylon 6
Bearing: Deep groove ball bearing C3 clearance
Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting, Epoxy painting
Standard Diameter | Length scope ( mm) | Bearings Type | Idler's Shell Wall Thickness | |
mm | Inch | |||
63.5 | 2 1/2 | 150~3500 | 204 | 3.0mm~3.75mm |
76 | 3 | 150~3500 | 204 205 | 3.0mm~4.0mm |
89 | 3 1/3 | 150~3500 | 204 205 | 3.0mm~4.0mm |
102 | 4 | 150~3500 | 204 205 305 | 3.5mm~4.0mm |
108 | 4 1/4 | 150~3500 | 204 205 305 306 | 3.5mm~4.0mm |
114 | 4 1/2 | 150~3500 | 205 206 305 306 | 3.5mm~4.5mm |
127 | 5 | 150~3500 | 204 205 305 306 | 3.5mm~4.5mm |
133 | 5 1/4 | 150~3500 | 205 206 207 305 306 | 3.5mm~4.5mm |
140 | 5 1/2 | 150~3500 | 205 206 207 305 306 | 3.5mm~4.5mm |
152 | 6 | 150~3500 | 205 206 207 305 306 307 308 | 4.0mm~4.5mm |
159 | 6 1/4 | 150~3500 | 205 206 207 305 306 307 308 | 4.0mm~4.5mm |
165 | 6 1/2 | 150~3500 | 207 305 306 307 308 | 4.5mm~6.0mm |
177.8 | 7 | 150~3500 | 207 306 307 308 309 | 4.5mm~6.0mm |
190.7 | 7 1/2 | 150~3500 | 207 306 307 308 309 | 4.5mm~6.0mm |
194 | 7 5/8 | 150~3500 | 207 307 308 309 310 | 4.5mm~6.0mm |
219 | 8 5/8 | 150~3500 | 308 309 310 | 4.5mm~6.0mm |
