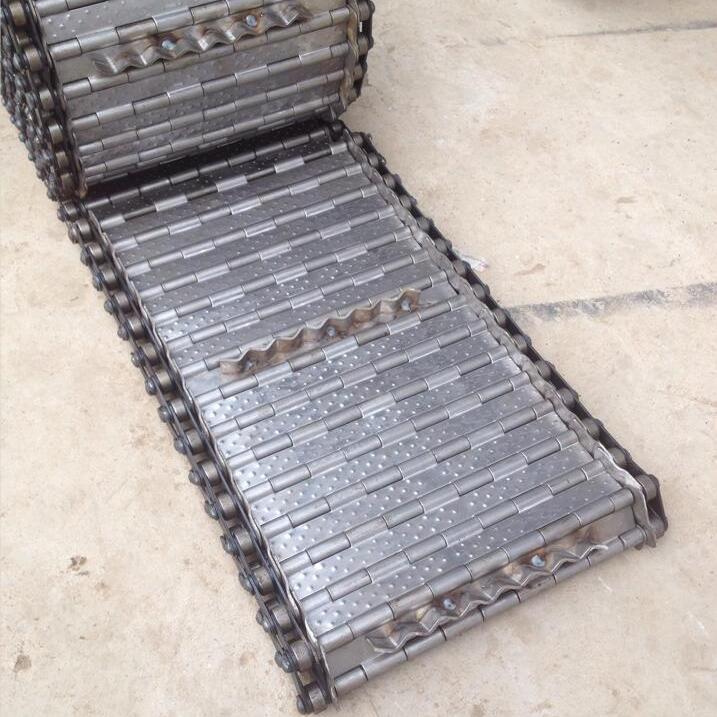

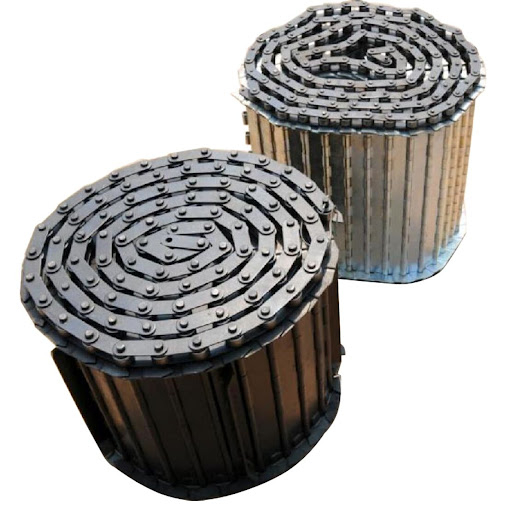

Chip Conveyor Belt
Chip conveyor is used primarily in industrial settings to carry away waste, such as metal chips or the shavings produced during machining and manufacturing operations. They are typically small and designed to handle wet or dry waste as many of the types of processes that create the waste they are designed to carry use water or other liquids as lubricants. They are useful for a number of reasons as they carry waste away from the work area, promoting safety and cleanliness. They also aid in recycling processes for scrap and filter chips, shavings, and other scrap from lubricating materials, which helps reduce clogging in drains, pipes and tanks.
Specification:
No. | Pitch between chains | Width of Chain plate(mm) | Material | Length of scraper (mm) | Thickness of scraper plate(mm) | Center distance between chains(mm) | Inside link and inside width(mm) | Height of Buffer(mm) | Diameter of Roller (mm) | Diameter of shaft(mm) |
1 | 31.75mm | 150-500mm | steel /stainless steel | Width -50 | 30 | Width +18 | 9.45 | 19 | 19.05 | 5 |
2 | 38.1mm | 200-500mm | steel /stainless steel | Width -50 | 30 | Width +23 | 12.57 | 20 | 22.23 | 8 |
3 | 50.8mm | 500-700mm | steel /stainless steel | Width -50 | 30 | Width +29 | 15.75 | 25 | 28.58 | 10 |
4 | 63.5mm | 500-2000mm | steel /stainless steel | Width -50 | 30 | Width +35 | 18.9 | 35 | 39.67 | 12 |
5 | 100 | 500-2000mm | steel /stainless steel | Width -50 | 30 | Width +50 | 31.75 | 50 | 57.15 | 14 |
