Chevron Conveyor Belt
Toptrans
Chevron Conveyor Belt

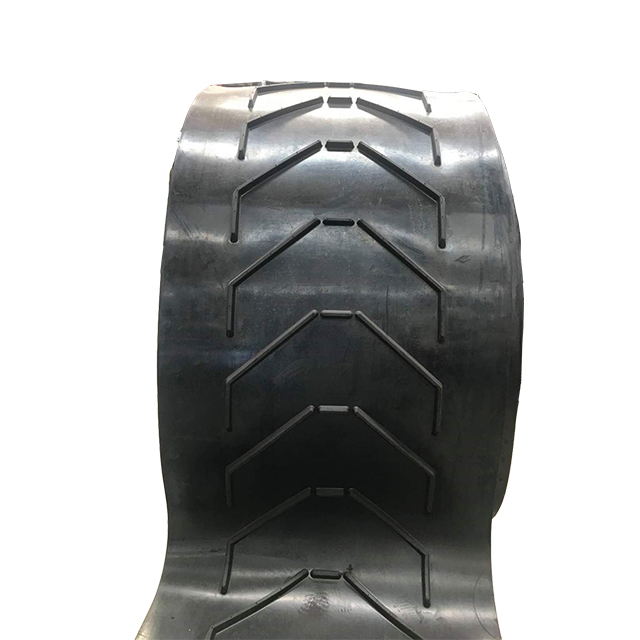

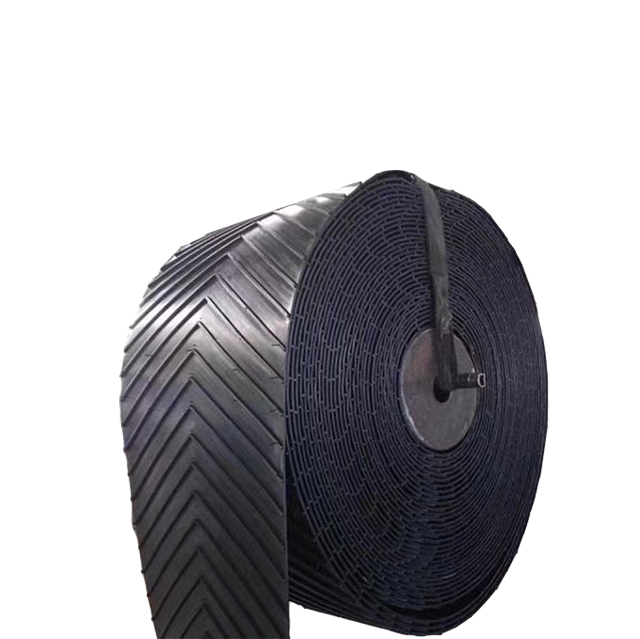

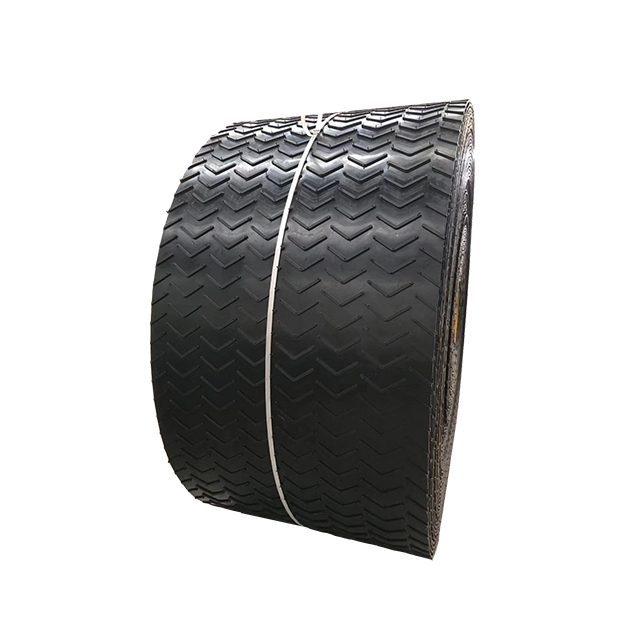

Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.
Features:
Anti-slip;
Cleats and top cover rubber are vulcanized integrally;
Cleat pattern, angle and pitch are designed elaborately.
Selection of a type and height of cleats depends on the materials conveyed and the angle of inclination:
Type of material | Material example | Max. angle of inclination | |||
Height of cleats | |||||
H(mm):14 | H(mm):16 | H(mm):25 | H(mm):32 | ||
Powdery | Flour, etc. | 25° | 25° | 28° | 30° |
Loose flowing | Corn, barley, wheat, rye, etc. | 20/25° | 20/25° | 25/30° | 25/30° |
Loose rolling | Gravel, ground stone, etc. | 25° | 25° | 28° | 30° |
Packed | Sacks, paper sacks, etc. | 30/35° | 30/35° | 35/40° | 35/40° |
Sticky | Wet sand, ash, wet loam, etc. | 30° | 30/35° | 35/40° | 40/45° |
Cleat pattern ranges: Conveyor belts with close V type, open V type, C type, and Y type
Chevron Conveyor Belt
Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 40 degrees.
Features:
Anti-slip;
Cleats and top cover rubber are vulcanized integrally;
Cleat pattern, angle and pitch are designed elaborately.
Selection of a type and height of cleats depends on the materials conveyed and the angle of inclination:
Type of material | Material example | Max. angle of inclination | |||
Height of cleats | |||||
H(mm):14 | H(mm):16 | H(mm):25 | H(mm):32 | ||
Powdery | Flour, etc. | 25° | 25° | 28° | 30° |
Loose flowing | Corn, barley, wheat, rye, etc. | 20/25° | 20/25° | 25/30° | 25/30° |
Loose rolling | Gravel, ground stone, etc. | 25° | 25° | 28° | 30° |
Packed | Sacks, paper sacks, etc. | 30/35° | 30/35° | 35/40° | 35/40° |
Sticky | Wet sand, ash, wet loam, etc. | 30° | 30/35° | 35/40° | 40/45° |
Cleat pattern ranges: Conveyor belts with close V type, open V type, C type, and Y type
